Exhaust gas discharge
Connectors and pliers
Connection system
Each consisting of:
– Connecting pliers (system clamping pliers or bow clamping pliers)
– Connecting piece “male part”
– Connecting piece “mother part”
– High temperature graphite gasket
The male part carries the seal and has a collar for centring and easy connection of the parts. The half-shells of the pliers are put on and connected without tools.
System clamping pliers
Easy operation with crimping pliers.
U-clamp pliers
Space-saving swing stopper
Special customer constructions

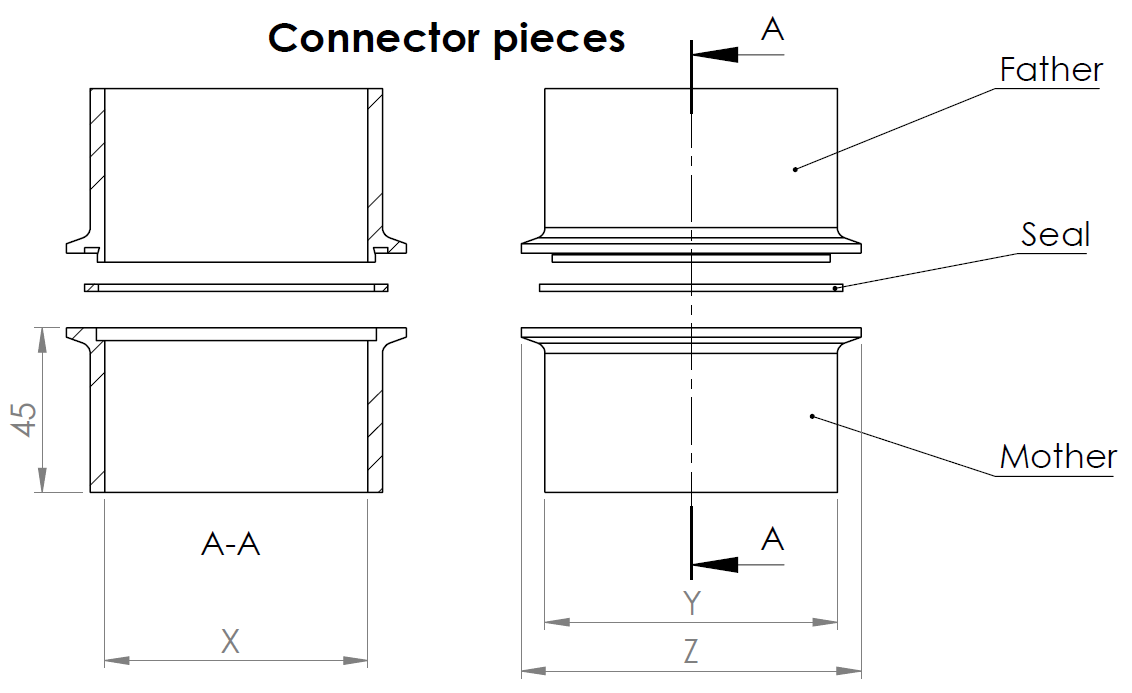

Connection pieces
Available in a wide range of sizes.
Inner diameter mm
Inner diameter Zoll
Articelnumber male part
Articelnumber female part
Articelnumber gasket
Measure X
Measure Y
Measure Z
52
2.0
10400-1
10400-2
28000(ID052)
52.0
60.0
73.0
64
2.5
10450-1
10450-2
28000(ID064)
64.0
70.0
82.0
72
3.0
10500-1
10500-2
28000(ID072)
72.0
80.0
93.0
100
4.0
10452-1
10452-2
28001(ID100)
100.0
109.5
121.0
125
5.0
10453-1
10453-2
28002(ID125)
125.0
133.0
146.0
Connecting pliers
Available in two versions.
– System clamping pliers
– U-clamp pliers
System clamping pliers
Inner diameter mm
Inner diameter Zoll
Articelnumber
Measure W mm
52
2.0
10400A
112.0
64
2.5
10450C
118.0
72
3.0
10500B
132.0
100
4.0
10452E
160.0
125
5.0
10453F
185.0
U-clamp pliers
Inner diameter mm
Inner diameter Zoll
Articelnumber
Measure W mm
52
2.0
10400A
112.0
64
2.5
10450C
118.0
72
3.0
10500B
132.0
100
4.0
10452E
160.0
125
5.0
10453F
185.0
