Standard accessories

S. Bleyer GmbH offers a wide range of standardised accessories for fixing vehicles, which you will find on the following pages. These include anchor trolleys for four plug-in anchors or for four sliding anchors, retrofittable floor bushings and mounting rails as well as various brackets. S. Bleyer GmbH also offers a maintenance set to accompany the maintenance training.

Accessories – specially developed for you.

The employees of S. Bleyer GmbH are happy to design accessories especially for you and to configure them individually according to your requirements.

With us you get Problem solving and function optimization in metal.

Rods for hook fixation

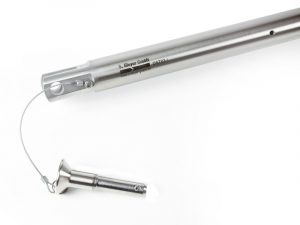

Diagonal Rod

Articelnumber: 300 006 DST03

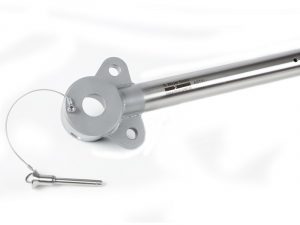

Rod for trailer coupling

Articelnumber: 300 009 AST03

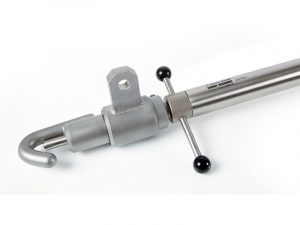

Tractive Rod

Articelnumber: 300 007 ZST03

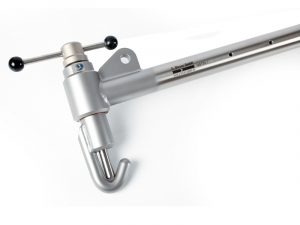

Transverse Rod

Articelnumber: 300 008 QST03

Rods for wheel hub fixation

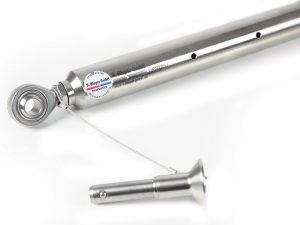

Diagonal Wheel Hub Rod

Articelnumber: 506 002 DRST05

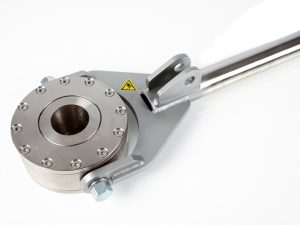

Wheel Hub Rod

Articelnumber: 506 001 RST05


Plug-in anchor large

Articelnumber: 300 002 STA03L

Plug-in anchor wagon

The plug-in anchor trolley contains sockets for four plug-in anchors. It is used for both transport and storage of the anchors. Two of the four rubber castors are swivel castors for easy manoeuvring.


Length incl. handle: 85 cm
Width: 50 cm


Sliding anchor wagon

The sliding anchor trolley contains devices to hold four sliding anchors. This makes it suitable for both transport and storage of the anchors. It is equipped with four rubber castors, two of which are swivel castors.


Length incl. handle: 115 cm
Width: 50 cm


Special shapes for plug-in and sliding anchor wagons

S. Bleyer GmbH constructs and produces special shapes for your requirements.

6-person plug-in anchor trolley: This special form offers space for six plug-in anchors.

Sliding anchor rod trolley: This trolley can hold two sliding anchors and four fixing rods.

Ground sockets for plug-in anchors

This can be steel construction floor or concrete floor, S. Bleyer has developed a solution for both floor types. The distance between the bushings is based on the test vehicles used.

Each floor bushing has a lid that closes the bushing so that no objects can fall into it. The cover also prevents the risk of tripping.

If you need more floor sockets, these can be retrofitted at any time.

Mounting rails for sliding anchors

They are recessed into the test stand floor. Halfen rails or Jordahl rails are used for mounting.

The rail spacing and the rail length are based on the necessities in the respective test space (e.g. possible vehicle lengths).

They can be retrofitted in the test stand at any time if this is structurally possible.

Brackets for fixing rods

The rod holder allows you to store the vehicle fixation rods safely and in a space-saving way.

If the rod holder is mounted in the test room directly next to the roller, the rods are always at hand for mounting and quickly tidied up when dismounting. This enables short set-up times of a few minutes per vehicle.

Brackets for wheel hub bearings

The wheel hub rod normally remains firmly screwed to the wheel hub bearing during daily testing.

S. Bleyer GmbH has developed a special rod holder for this combination: The wheel hub bearing is placed with the cone-shaped recess on a white plastic cone. In addition, the rod is held in position on the wall with a clamping bracket.

Further Accessories

for Anchor

Height adapter console

Articelnumber: 700-SAK-SA

for wheel rim modules

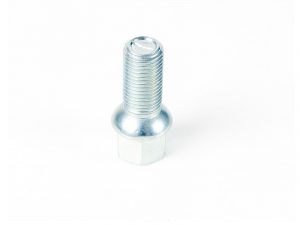

Wheel bolt for fixation bearing

Articelnumber: 500 107 RS05

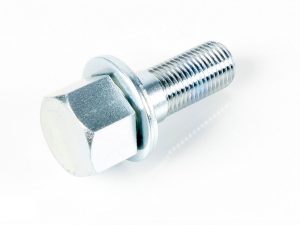

Connecting bolt

Articelnumber: 500 108 VS05-M14x1,5

Fixing screws for RST05 (2 pieces)

Articelnumber: 500 109 FS05
