Wheel rim modules

Accessories for adaptions to the Wheel rim modules

The wheel rim modules are used for adaptation to the various wheel nuts and bolts, as well as bolt circles.

In the process, the wheel nuts or bolts are replaced by the thread adapters and the bolt circle is merged with the wheel rim adapter. The wheel rim adapter connects the thread adapters with the locating bearing.

There is also a solution for the central nut or bolt common in motorsports: Central screw fixation

Most of those components are in stock and can be shipped promptly. That way you prevent unneccesary downtime on your test room.

Give us a phone call: +49 (0) 7181 9327-0

oder

Send us an E-Mail

Wheel rim adapter

The wheel rim adapter connects the thread adapter with the locating bearing.

For the definition we need information about the bolt circle diameter and the number of wheel nuts or bolts.

Up to 3 bolt circles are possible on the same adapter to reduce the need for components.











							3-hole wheel rim adapter incl. connecting bolts and external wheel bolt

							Articelnumber: FA05K-3L-98-112 Z10f1







							4-hole wheel rim adapter incl. connecting bolts and external wheel bolt

							Articelnumber: FA05K-4L-100-108-114,3 Z10e1

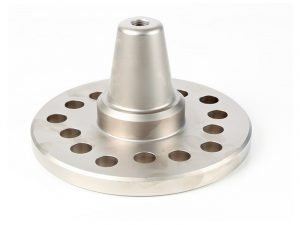

							5-hole wheel rim adapter incl. connecting bolts and external wheel bolt

							Articelnumber: FA05K-5L-112-120-130 Z10d4







							6-hole wheel rim adapter incl. connecting bolts and external wheel bolt

							Articelnumber: FA05K-6L-135-139,7-180 Z10i3

Other sizes on request. There is a large number of wheel rim adapters. We have the most common ones in stock.

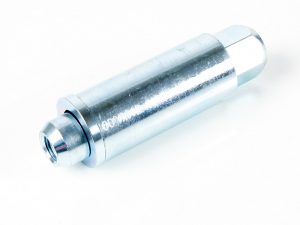

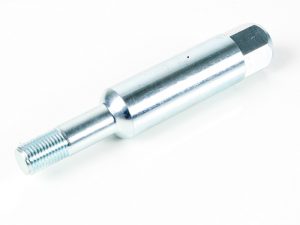

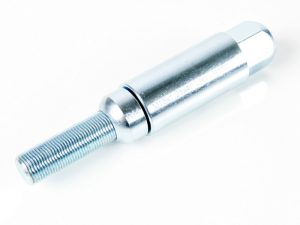

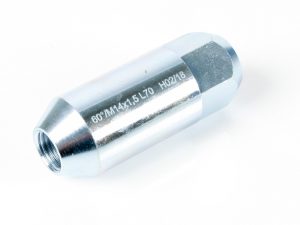

Thread apdater

The thread adapters are available in different designs to cover the different types of construction.
Modern vehicles today often have a decoupled centering (cone or ball head), especially for alloy rims.

It is always important to ensure that the head and thread shape of the thread adapters used correspond to the head and thread shape of the original wheel bolts or nuts in order to avoid accidents and damage.
